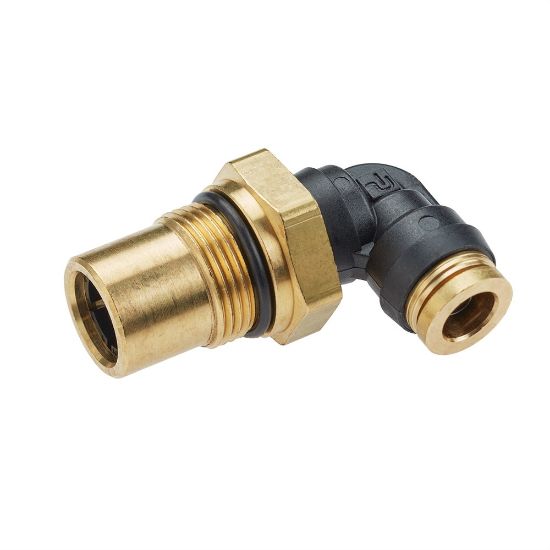

369PTCRCKP-8-MA22 - Air Brake DOT Single & Double Check Valves

Parker's DOT Check Valves were designed to deliever increased flow capacity and reliable sealing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU 369PTCRCKP-8-MA22

$42.10/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 2 Type	Push-to-Connect	Product Style	Tube to Pipe
Body Material	Composite	Connection 3 Size	N/A
Connection 3 Type	N/A	Connection 1 Size	M22X1.5
Connection 1 Type	Male M22 Thread	Connection 2 Size	1/2 inch
Valve Type	Single Check Valve	Connection 1 Size	M22X1.5
Connection 3 Type	N/A	Connection 2 Type	Push-to-Connect
Product Style	Tube to Pipe	Brand	Parker
Specifications Met	SAE J1409 & SAE J1410	Thread Sealant Material	N/A
Connection 2 Size	1/2	Tube Material	J844 Type A & B Nylon Tubing
Collet Material	Brass	Technology	Fluid & Gas Handling
Connection 3 Size	N/A	Media	Compressed Air
Product Type	Check Valves	Division	Fluid System Connectors Division
Shape	90° Elbow	Division	Fluid System Connectors Division
Industry	Automotive, Trucks, and Buses	Valve Type	Single Check Valve
Application	Air Brake	O-Ring Material	Buna N
Body Material	Composite	Connection 1 Type	Male M22 Thread
