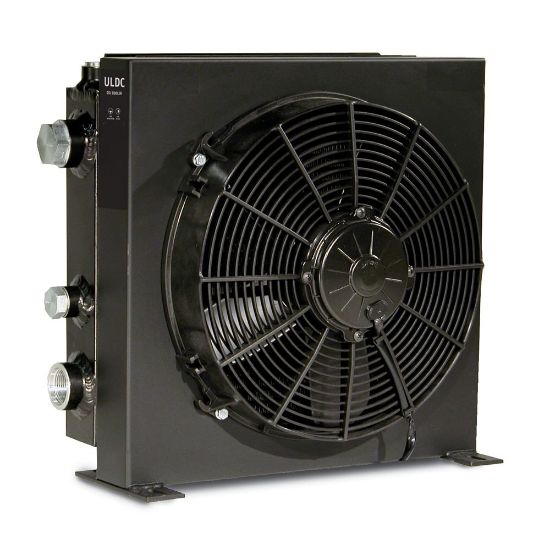

ULDC-007-B-100SW - Air Oil Cooler with DC Motor - ULDC Series - (Americas)

ULDC Series mobile air oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 37hp of cooling and are suitable for most mobile applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ULDC-007-B-100SW

$2,076.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Thermoswitch	100°F
Bypass Options	no bypass	Size	ULDC-007
Motor Type	24 VDC	Width	6.8 inch
Division	Accumulator and Cooler Division	Height	13.3 inch
For Fluid Type	Mineral Oil	Input Voltage	24 VDC
Length	13 inch	Port Size	1
Flow Rate	124.9 L/min	Specifications Met	n/a
Motor Power Output Rating	0.27 HP	Maximum Fluid Temperature	121 °C
Weight	9 kg	Maximum Operating Pressure	300 psi
Connection Thread Size	1-5/16"-12 inch	Materials of Construction	Steel
Maximum Cooling Capacity	9.7 HP	Noise Level	71 dBA

Product resources

Literature and Reference Materials
