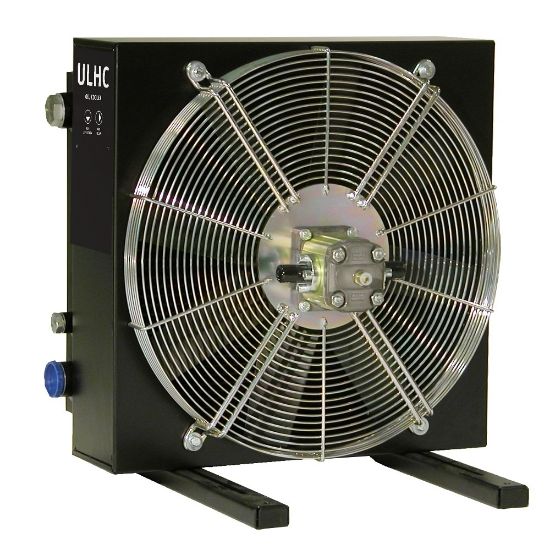

ULHC-016-A-000SA - Air Oil Cooler with Hydraulic Motor - ULHC Series - (Americas)

ULHC Series oil coolers offer a compact and durable design that will provide efficient performance and long life. They provide up to 215hp of cooling and are suitable for most industrial and mobile applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU ULHC-016-A-000SA

$4,857.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Motor Displacement (cc/rev)	8.4 cm3/rev
Bypass Options	20 psi External Hose Bypass	Size	Size 016
Switch Type	No Thermal Switch	Maximum Operating Speed	Fan: 3500 RPM
Width	20.1 inch	Weight	40 lb
For Fluid Type	Water Glycol	Height	20.7 inch
Division	Accumulator and Cooler Division	Maximum Fluid Temperature	250 °F
Length	19.5 inch	Port Size	1
Connection Thread Size	1-5/16"-12 inch	Maximum Cooling Capacity	30.3
Maximum Operating Pressure	3000	Noise Level	70
Materials of Construction	Aluminum	Flow Rate	52.8 Gal/min
