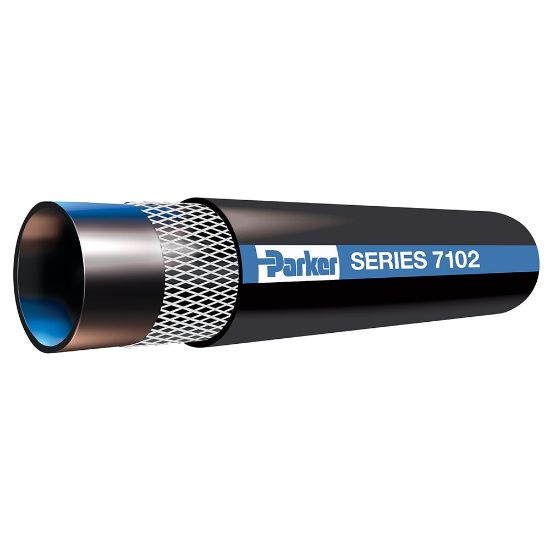

7102-100304 - ARCTIC EDGE™ Low Temperature Multipurpose Oil Resistant Hose, Series 7102

Arctic Edge Low Temperature Oil Resistant Multipurpose Rubber Hose is designed to transfer air, oil, water and refined fuels such as biodiesel, diesel, ethanol and gasoline in applications to -70°F and 300 psi, Series 7102

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 108 days
Partner Available:	364 in stock

SKU 7102-100304

$21.96/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1
Maximum Working Pressure (psi)	300	Maximum Operating Temperature	100 °C
Compatible Fitting	HY Series	Hose Inner Tube Material	Black
Length per Package	300 ft	Division	Hose Products Division
Cover Material	Chloroprene Rubber (CR)	Minimum Operating Temperature	-70 °F
Minimum Bend Radius	203.2 mm	Media	Water
Package Type	Reel	Outside Diameter	1.458 inch
Application	Multipurpose	Hose Reinforcement Material	4 Plies of Textile with Static Wire
Specifications Met	n/a	Cover Color	Black
Maximum Operating Pressure	20.7 bar	Weight	0.80 kg/m
Inside Diameter	25.4 mm

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
