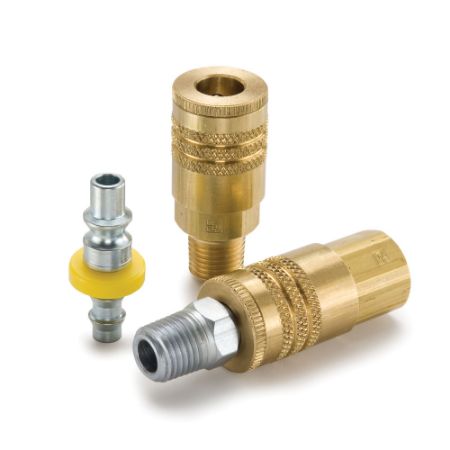

ARO 210 Interchange, Quick Connect Air Couplings - 50 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
50 Series Couplers connect with 50 Series Nipples and are interchangeable with the ARO 210 couplers. 50 Series quick couplings are pneumatic/air, manual sleeve, single shut off up to 300 psi. Couplers have an integral sleeve guard to resist accidental disconnection. The tubular valve delivers high air flow with minimal pressure drop. Couplers and Nipples are available in 1/4" size.
Technical Characteristics:
• Size: 1/4”
• Material: Brass Couplers; Steel Nipples
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Furniture building
• Textile industry
• Industrial
• Construction
• Factory automation
Features/Benefits:
• Interchangeable with ARO 210 nipples
• Steel nipples are case hardened for durability
• Non-valved nipples mate with valved couplers for a single shut-off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Paint applicators
Read More...Technical Characteristics:
• Size: 1/4”
• Material: Brass Couplers; Steel Nipples
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
Markets:
• Furniture building
• Textile industry
• Industrial
• Construction
• Factory automation
Features/Benefits:
• Interchangeable with ARO 210 nipples
• Steel nipples are case hardened for durability
• Non-valved nipples mate with valved couplers for a single shut-off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Paint applicators
| Action | SKU | Availability | Partner Available | Price | UOM | Coupling Half | Connection Type | Hose I.D. (inch) | Connection Thread Size (inch) | Product Type | Plating Type | Minimum Operating Temperature | Hex Size | Division | Maximum Operating Temperature | Valve Type | Body Size | Maximum Operating Pressure | Body Material | Application | Interchange Type | Dimensional Weight | Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A2C | 320 in stock | 2515 in stock | $3.57/each | EA | Male Nipple | Male NPTF | na | 1/4 - 18 | Manual Connect | Zinc with clear trivalent chromate | -40 °F | 0.56 inch | Quick Coupling Division | 250 °F | Unvalved | 1/4 inch | 300 psi | Steel | Pneumatic Tools | Interchangeable with ARO’s 210 series | 0.013329336530775381 lb | ||
| A3C | 89 in stock | 2023 in stock | $4.20/each | EA | Male Nipple | Female NPTF | na | 1/4 - 18 | Manual Connect | Zinc with clear trivalent chromate | -40 °F | 0.62 inch | Quick Coupling Division | 250 °F | Unvalved | 1/4 inch | 300 psi | Steel | Pneumatic Tools | Interchangeable with ARO’s 210 series | 0.013329336530775381 lb | ||
| A8C | 4 in stock | 192 in stock | $7.99/each | EA | Male Nipple | Hose barb | 1/4 | na | Manual Connect | Zinc with clear trivalent chromate | -40 °F | 0.62 inch | Quick Coupling Division | 250 °F | Unvalved | 1/4 inch | 300 psi | Steel | Pneumatic Tools | Interchangeable with ARO’s 210 series | 0.013329336530775381 lb | ||
| A8CP | 42 in stock | 439 in stock | $8.98/each | EA | Male Nipple | Push-Lok hose barb | 1/4 | na | Manual Connect | Zinc with clear trivalent chromate | -40 °F | 0.62 inch | Quick Coupling Division | 250 °F | Unvalved | 1/4 inch | 300 psi | Steel | Air Compressors | Interchangeable with ARO’s 210 series | 0.013329336530775381 lb | ||
| B50-3BP | 18 in stock | 207 in stock | $27.17/each | EA | Female Coupler | Push-Lok hose barb | 1/4 | na | Manual Connect | -40 °F | 0.75 inch | Quick Coupling Division | 250 °F | Tubular | 1/4 inch | 300 psi | Brass | Air Compressors | Interchangeable with ARO’s 210 series | 0.026658673061550762 lb | Nitrile | ||
| B50-5BP | 3 in stock | 250 in stock | $27.60/each | EA | Female Coupler | Push-Lok hose barb | 3/8 | na | Manual Connect | -40 °F | 0.75 inch | Quick Coupling Division | 250 °F | Tubular | 1/4 inch | 300 psi | Brass | Pneumatic Tools | Interchangeable with ARO’s 210 series | 0.026658673061550762 lb | Nitrile | ||
| B52 | 97 in stock | 688 in stock | $21.93/each | EA | Female Coupler | Male NPTF | na | 1/4 - 18 | Manual Connect | -40 °F | 0.75 inch | Quick Coupling Division | 250 °F | Tubular | 1/4 inch | 300 psi | Brass | Air Compressors | Interchangeable with ARO’s 210 series | 0.026658673061550762 lb | Nitrile | ||
| B52E | 4 in stock | 82 in stock | $24.50/each | EA | Female Coupler | Male NPTF | na | 3/8 - 18 | Manual Connect | -40 °F | 0.75 inch | Quick Coupling Division | 250 °F | Tubular | 1/4 inch | 300 psi | Brass | Pneumatic Tools | Interchangeable with ARO’s 210 series | 0.026658673061550762 lb | Nitrile | ||
| B53 | 164 in stock | 1393 in stock | $20.78/each | EA | Female Coupler | Female NPTF | na | 1/4 - 18 | Manual Connect | -40 °F | 0.75 inch | Quick Coupling Division | 250 °F | Tubular | 1/4 inch | 300 psi | Brass | Pneumatic Tools | Interchangeable with ARO’s 210 series | 0.026658673061550762 lb | Nitrile | ||
| B53E | Backordered | 87 in stock | $33.30/each | EA | Female Coupler | Female NPTF | na | 3/8 - 18 | Manual Connect | -40 °F | 0.81 inch | Quick Coupling Division | 250 °F | Tubular | 1/4 inch | 300 psi | Brass | Air Compressors | Interchangeable with ARO’s 210 series | 0.02670863309352518 lb | Nitrile |
