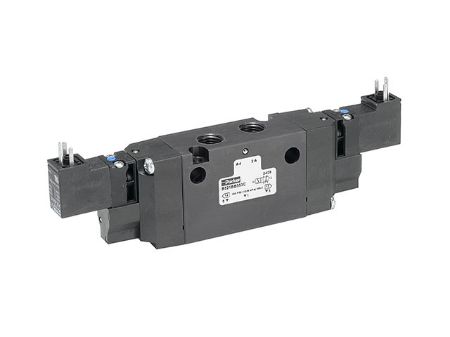

B Series Double Solenoid 4-way 2-position Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
B Series Double Solenoid 4-way 2-position Valve
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | CV Factor | Solenoid Voltage | Pkg Qty | Operator Type Detail | Override Type | Pilot Supply | Port | Override Type | Valve Passages | Port | Operator Type Detail | Supply Pressure Range | Operator Type | Port Inch/BSP | CV Factor | Solenoid Voltage | Parker Division | Parker Group | Solenoid Connection | Operating Temperature | Pilot Supply | Valve Positions | Pneumatic Valve Type | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B320BB549C | 6 in stock | 17 in stock | $222.45/each | EA | EA | 0.75 | 24VDC | 1 | Double | Non-locking | Internal | 1/8 NPT | Non-locking | 4-way | 1/8 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 0.75 | 24VDC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B320BB553C | Backordered | Backordered | $222.45/each | EA | EA | 0.75 | 120VAC | 1 | Double | Non-locking | Internal | 1/8 NPT | Non-locking | 4-way | 1/8 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 0.75 | 120VAC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B521BB549C | Backordered | 8 in stock | $337.86/each | EA | EA | 1.4 | 24VDC | 1 | Double | Non-locking | Internal | 1/4 NPT | Non-locking | 4-way | 1/4 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 1.4 | 24VDC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B521BB553C | 2 Limited Stock | 1 Limited Stock | $259.89/each | EA | EA | 1.4 | 120VAC | 1 | Double | Non-locking | Internal | 1/4 NPT | Non-locking | 4-way | 1/4 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 1.4 | 120VAC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B522BB549C | 4 in stock | 19 in stock | $272.03/each | EA | EA | 1.4 | 24VDC | 1 | Double | Non-locking | Internal | 3/8 NPT | Non-locking | 4-way | 3/8 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 1.4 | 24VDC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B522BB553C | 1 Limited Stock | 13 in stock | $272.03/each | EA | EA | 1.4 | 120VAC | 1 | Double | Non-locking | Internal | 3/8 NPT | Non-locking | 4-way | 3/8 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 1.4 | 120VAC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B622BB549A | Backordered | 1 Limited Stock | $427.31/each | EA | EA | 2.7 | 24VDC | 1 | Double | Non-locking | Internal | 3/8 NPT | Non-locking | 4-way | 3/8 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 2.7 | 24VDC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B622BB553A | Backordered | Backordered | $328.70/each | EA | EA | 2.7 | 120VAC | 1 | Double | Non-locking | Internal | 3/8 NPT | Non-locking | 4-way | 3/8 NPT | Double | 20 to 145 PSIG (1.4 to 10 bar) | Solenoid | NPT | 2.7 | 120VAC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B723BB549A | Backordered | Backordered | $472.74/each | EA | EA | 5.9 | 24VDC | 1 | Double | Non-locking | Internal | 1/2 NPT | Non-locking | 4-way | 1/2 NPT | Double | 35 to 145 PSIG (2.4 to 10 bar) | Solenoid | NPT | 5.9 | 24VDC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B723BB553A | Backordered | Backordered | $472.74/each | EA | EA | 5.9 | 120VAC | 1 | Double | Non-locking | Internal | 1/2 NPT | Non-locking | 4-way | 1/2 NPT | Double | 35 to 145 PSIG (2.4 to 10 bar) | Solenoid | NPT | 5.9 | 120VAC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B824BB549A | Backordered | Backordered | $488.32/each | EA | EA | 7 | 24VDC | 1 | Double | Non-locking | Internal | 3/4 NPT | Non-locking | 4-way | 3/4 NPT | Double | 35 to 145 PSIG (2.4 to 10 bar) | Solenoid | NPT | 7 | 24VDC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B | |
| B824BB553A | Backordered | Backordered | $488.32/each | EA | EA | 7 | 120VAC | 1 | Double | Non-locking | Internal | 3/4 NPT | Non-locking | 4-way | 3/4 NPT | Double | 35 to 145 PSIG (2.4 to 10 bar) | Solenoid | NPT | 7 | 120VAC | Pneumatic | Automation | 15mm 3-Pin DIN 43650C | -15°C to 49°C (5°F to 120°F) | Internal | 2-position | Inline Valve | B |
