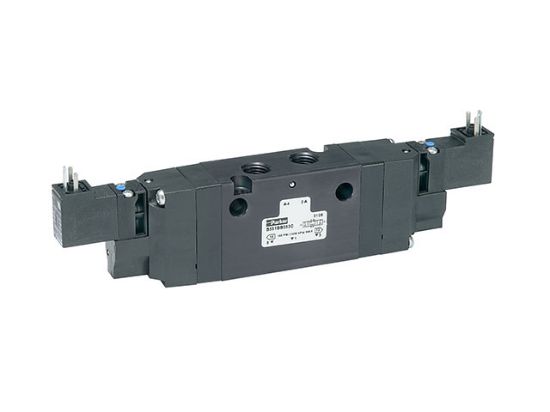

B652BB553A - B Series Double Solenoid 4-way 3-position Valve

B Series Double Solenoid 4-way 3-position Valve

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	1 Limited Stock

SKU B652BB553A

$512.06/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Solenoid Voltage	120VAC
UOM	EA	CV Factor	2.1
Offset Return Type	Spring Return	Operator Type Detail	Double
Override Type	Non-locking	Pkg Qty	1
Center Condition	All Ports Blocked	Pilot Supply	Internal
Port	3/8 NPT	Parker Group	Automation
Parker Division	Pneumatic	Port Inch/BSP	NPT
Port	3/8 NPT	Pneumatic Valve Type	Inline Valve
Valve Passages	4-way	Valve Positions	3-position
Offset Return Type	Spring Return	Center Condition	All Ports Blocked
Series	B	Operating Temperature	-15°C to 49°C (5°F to 120°F)
Supply Pressure Range	30 to 145 PSIG (2.1 to 10 bar)	Operator Type	Solenoid
Operator Type Detail	Double	Solenoid Connection	15mm 3-Pin DIN 43650C
Solenoid Voltage	120VAC	Pilot Supply	Internal
Override Type	Non-locking	CV Factor	2.1
