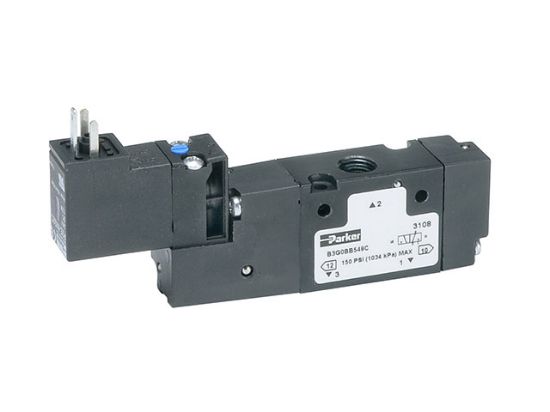

B3G0BB549C - B Series Single Solenoid 3-way 2-position Valve

B Series Single Solenoid 3-way 2-position Valve

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	8 in stock

SKU B3G0BB549C

$167.87/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Solenoid Voltage	24VDC
UOM	EA	Offset Return Type	Air Return
Override Type	Non-locking	Port	1/8 NPT
Operator Type Detail	Single	Pkg Qty	1
CV Factor	0.75	Pilot Supply	Internal
Port Inch/BSP	NPT	Parker Division	Pneumatic
Operator Type Detail	Single	CV Factor	0.75
Solenoid Voltage	24VDC	Valve Passages	3-way
Override Type	Non-locking	Pilot Supply	Internal
Operating Temperature	-15°C to 49°C (5°F to 120°F)	Valve Positions	2-position
Solenoid Connection	15mm 3-Pin DIN 43650C	Offset Return Type	Air Return
Parker Group	Automation	Port	1/8 NPT
Operator Type	Solenoid	Supply Pressure Range	20 to 145 PSIG (1.4 to 10 bar)
Series	B	Pneumatic Valve Type	Inline Valve
