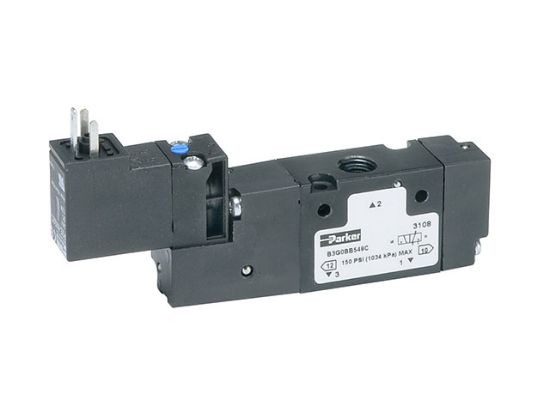

B3G0BB553C - B Series Single Solenoid 3-way 2-position Valve

B Series Single Solenoid 3-way 2-position Valve

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU B3G0BB553C

$129.13/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pilot Supply	Internal
Port	1/8 NPT	Operator Type Detail	Single
CV Factor	0.75	Offset Return Type	Air Return
Solenoid Voltage	120VAC	UOM	EA
Override Type	Non-locking	Pkg Qty	1
Series	B	Solenoid Voltage	120VAC
Override Type	Non-locking	Supply Pressure Range	20 to 145 PSIG (1.4 to 10 bar)
Operator Type	Solenoid	Pneumatic Valve Type	Inline Valve
Port	1/8 NPT	CV Factor	0.75
Valve Passages	3-way	Parker Division	Pneumatic
Operator Type Detail	Single	Port Inch/BSP	NPT
Offset Return Type	Air Return	Parker Group	Automation
Valve Positions	2-position	Solenoid Connection	15mm 3-Pin DIN 43650C
Operating Temperature	-15°C to 49°C (5°F to 120°F)	Pilot Supply	Internal
