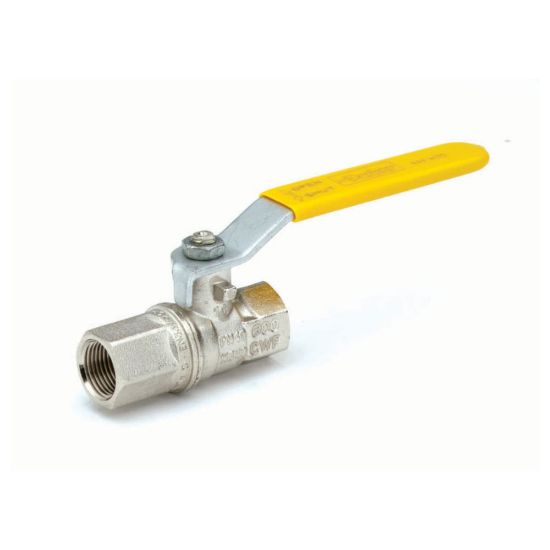

BVG4-2L - Ball Valve Series BVGL & BVGLOCK - Long Female Threads

BVGL & BVGLOCK series ball valves feature a nickel plated brass body and a chrome plated brass ball and are manufactured with long female threads.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 64 days
Partner Available:	Backordered

SKU BVG4-2L

$469.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Lever
Flow Diameter (mm)	50	Locking Mechanism	Non-Locking
Thread Size (Inch)	2	Minimum Operating Temperature	-40 °F
Product Style	Female to Female	Ball Material	Chrome-Plated Brass
Mounting Type	Inline	Orifice Size	50 mm
Product Type	Ball Valve	Connection Size	Varies
Function	Ball Valve	Connection Type	BSPP
Seat Material	PTFE	Division	Fluid System Connectors Division
Thread Size	BSPP	Seal Material	PTFE
Maximum Flow Rate	n/a	Maximum Operating Temperature	338 °F
Maximum Operating Pressure	40 bar	Configuration	Female to Female
Handle Type	Lever	Actuation Type	Manual
Vented	No	Operation Type	On/Off
Body Material	Nickel-Plated Brass	Shape	Inline
