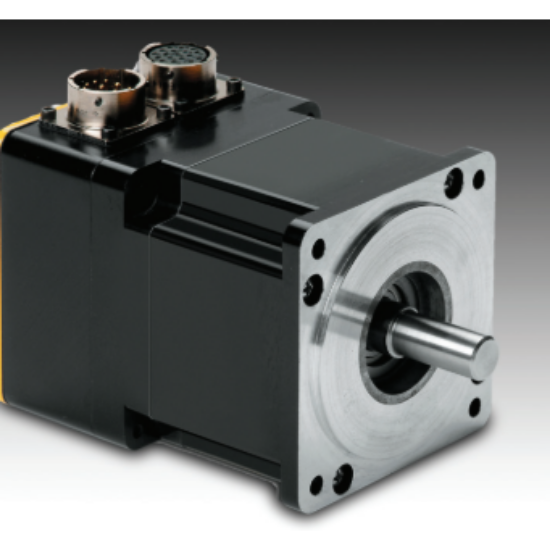

BE161CJ-FLCN

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU BE161CJ-FLCN

Products specifications

Attribute name	Attribute value
UOM	EA	Inductance	12.10 mH
Series	BE	Type	Brushless
Peak Current	6.1 Amp rms	Current at Rated Speed	1.9 Arm
Frame Size	NEMA 16	Stall Torque Continuous	0.15 Nm
Peak Torque	2.0 Nm	Resistance	4.31 Ohm
Maximum Bus Voltage	340 VDC	Maximum AC Voltage	240 VAC
Rated Speed	4965 rpm	Voltage Constant	4.51 Volts/krpm
Torque Constant	0.07 Nm/Arm	Motor	Servo
Shaft Power at Rated Speed	0.06 Watt	Rated Torque	0.12 Nm
Stall Current Continuous	2.0 Arm
