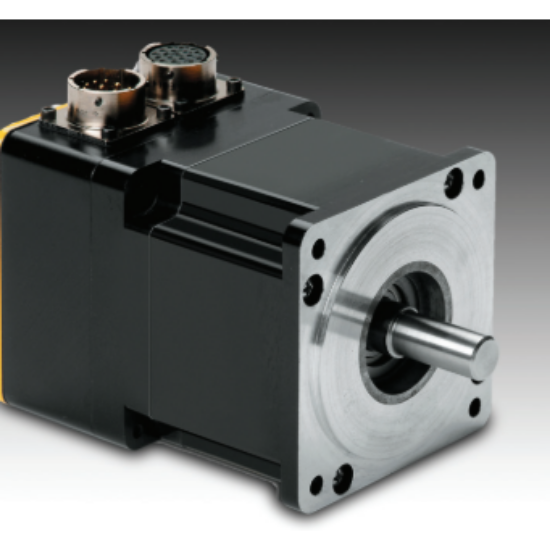

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

BE161FJ-FLCN

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU BE161FJ-FLCN

Products specifications

Attribute name	Attribute value
UOM	EA	Peak Current	14.7 Amp rms
Type	Brushless	Series	BE
Inductance	2.16 mH	Maximum Bus Voltage	170 VDC
Motor	Servo	Rated Speed	4965 rpm
Stall Current Continuous	4.9 Arm	Rated Torque	0.12 Nm
Shaft Power at Rated Speed	0.06 Watt	Current at Rated Speed	4.6 Arm
Stall Torque Continuous	0.15 Nm	Peak Torque	0.46 Nm
Resistance	0.74 Ohm	Frame Size	NEMA 16
Maximum AC Voltage	120 VAC	Torque Constant	0.03 Nm/Arm
Voltage Constant	1.90 Volts/krpm
