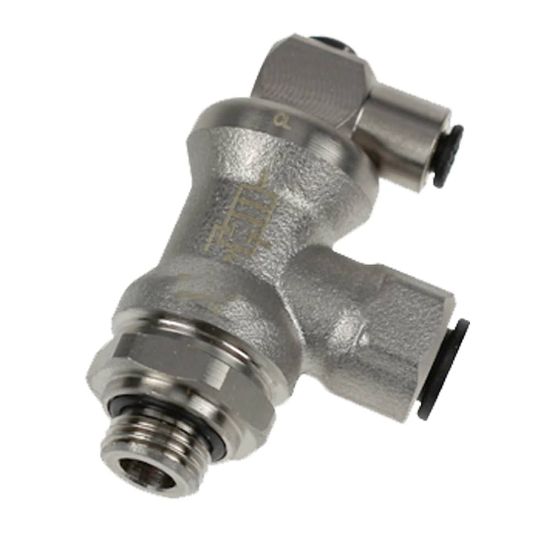

FC601-12M-8G - Blocking Valves

Parker's blocking valves prevents damage to work and equipment in the event of a loss of pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU FC601-12M-8G

$537.67/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Treated Brass
Connection 1 Tube Outside Diameter	12 mm	Maximum Operating Pressure	10 bar
Shape	Push-to-Connect	Product Style	Tube to Pipe
Application	Machine Tool, Pneumatics, Textile, Packaging	Connection 1 Thread Size	N/A
Media	Compressed Air	Minimum Operating Temperature	-4 °F
Connection 1 Size	Push-to-Connect	Division	Fluid System Connectors Division
Connection 2 Size	BSPP	Maximum Operating Temperature	70 °C
Pilot Line Thread Size	N/A	Connection 2 Thread Size	1/2 mm
Seal Material	Nitrile	Gripping Ring Material	Stainless Steel
