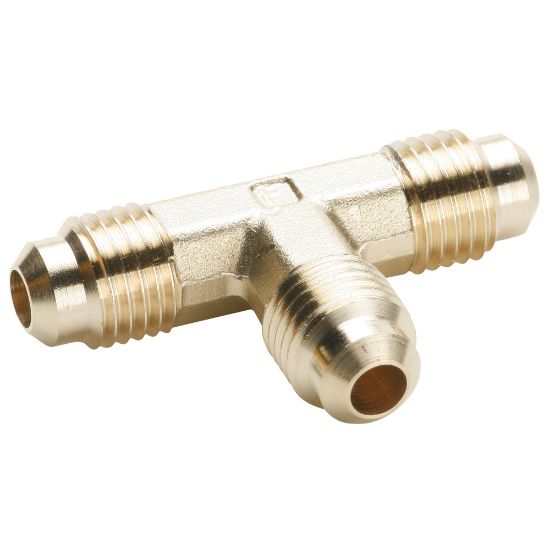

144F-10 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	28 in stock

SKU 144F-10

$34.70/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Flare to Flare
Shape	Tee	Connection 1 Type	Flare
Connection 2 Type	Flare	Connection 3 Type	Flare
Connection 1 Thread Size	7/8-14 inch	Connection 2 Thread Size	7/8-14 inch
Connection 3 Thread Size	7/8-14 inch	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	5/8 inch	Connection 3 Tube Outside Diameter	5/8 inch
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Brand	Parker	Minimum Operating Temperature	-65 °F
Maximum Operating Pressure	2800 psi	O-Ring Material	Fluorocarbon
Nut Material	Brass	Body Material	Brass
Dimensional Weight	0.27594424460431655 lb	Division	Fluid System Connectors Division
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Technology	Fluid & Gas Handling
