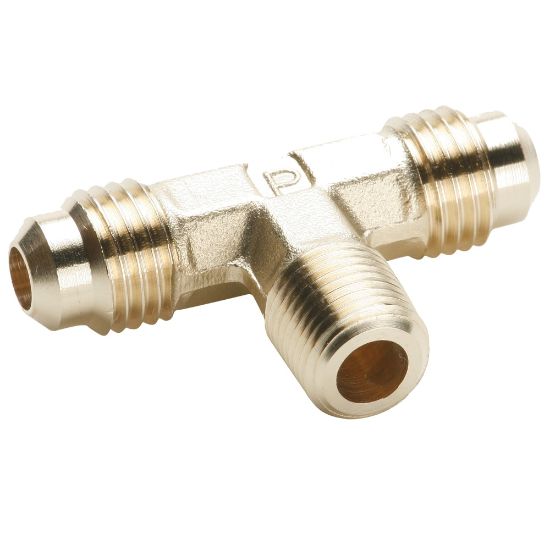

145F-2-2 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 22 days
Partner Available:	13 in stock

SKU 145F-2-2

$78.65/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Connection 1 Type	Flare	Connection 2 Type	Flare
Product Style	Flare to Pipe	Connection 3 Type	Male Pipe
Connection 1 Thread Size	5/16-24 inch	Connection 2 Thread Size	5/16-24 inch
Connection 3 Thread Size	1/8 inch	Connection 1 Tube Outside Diameter	1/8 inch
Connection 2 Tube Outside Diameter	1/8 inch	Connection 3 Tube Outside Diameter	NA
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Technology	Fluid & Gas Handling	Maximum Operating Temperature	121 °C
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Brand	Parker	Minimum Operating Temperature	-53 °C
Nut Material	Brass	O-Ring Material	Fluorocarbon
Body Material	Brass	Maximum Operating Pressure	193.0 bar
