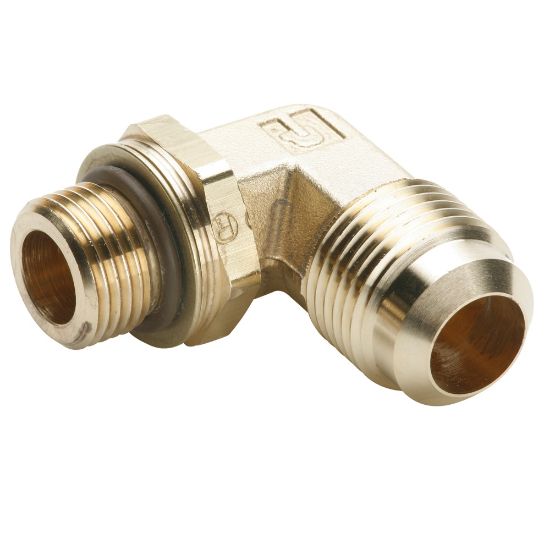

1495F-12-12 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	5 in stock

SKU 1495F-12-12

$86.47/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Product Style	Flare to Pipe	Connection 3 Tube Outside Diameter	NA
Shape	90° Forged Elbow	Connection 2 Type	SAE Straight Thread
Connection 3 Type	NA	Connection 1 Thread Size	1-1/16-14 inch
Connection 2 Thread Size	1-1/16-14 inch	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	NA
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Technology	Fluid & Gas Handling	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Maximum Operating Temperature	121 °C
Brand	Parker	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications Met	SAE J512, SAE J513	Minimum Operating Temperature	-53 °C
Body Material	Brass	Maximum Operating Pressure	37.9 bar
O-Ring Material	Fluorocarbon	Nut Material	Brass
Dimensional Weight	0.5518884892086331 lb
