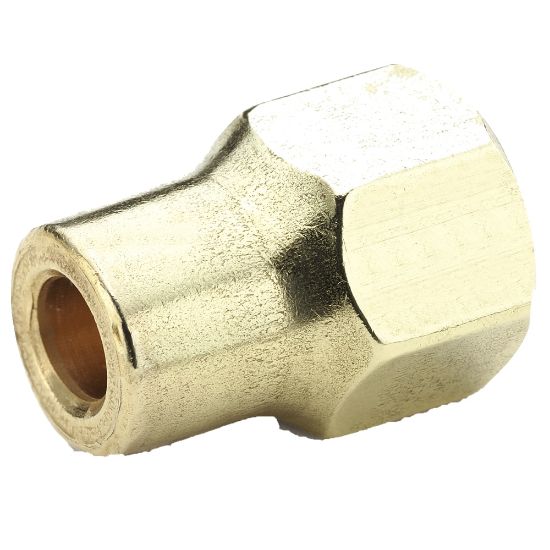

14FL-6 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 5 days
Partner Available:	13 in stock

SKU 14FL-6

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 1 Thread Size	5/8-18 inch	Connection 1 Tube Outside Diameter	3/8 inch
Connection 3 Tube Outside Diameter	NA	Shape	Long Forged Nut
Product Style	Flare	Connection 2 Type	NA
Connection 3 Type	NA	Connection 2 Thread Size	NA
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Brand	Parker
Specifications Met	SAE J512, SAE J513	Minimum Operating Temperature	-53 °C
Body Material	Brass	Maximum Operating Pressure	1,000 psi
Nut Material	Brass	O-Ring Material	Fluorocarbon
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Technology	Fluid & Gas Handling	Maximum Operating Temperature	250 °F
