*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

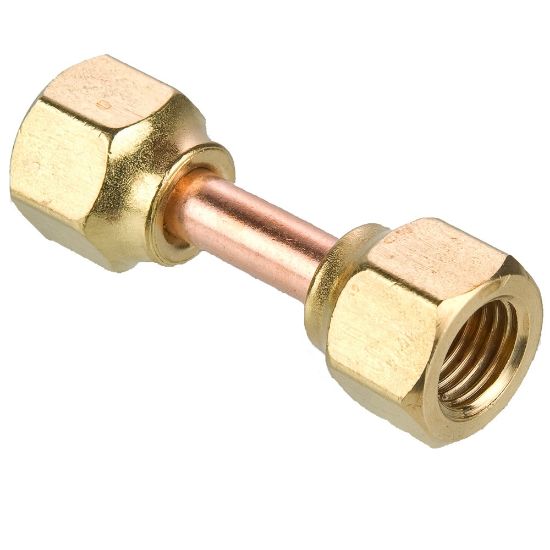

14FSV-4 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 5 days
Partner Available:	Backordered

SKU 14FSV-4

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 2 Thread Size	1/4 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Shape	Swivel Nut Connector	Product Style	Tube to Tube
Connection 1 Type	NPT Swivel Nut	Connection 2 Type	NPT Swivel Nut
Connection 1 Thread Size	1/4 inch	Connection 1 Tube Outside Diameter	NA
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Technology	Fluid & Gas Handling	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications Met	SAE J512, SAE J513	Brand	Parker
Minimum Operating Temperature	-65 °F	Nut Material	Brass
Body Material	Brass	Maximum Operating Pressure	193 bar
O-Ring Material	Fluorocarbon	Dimensional Weight	0.27594424460431655 lb
Maximum Operating Temperature	250 °F	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division
