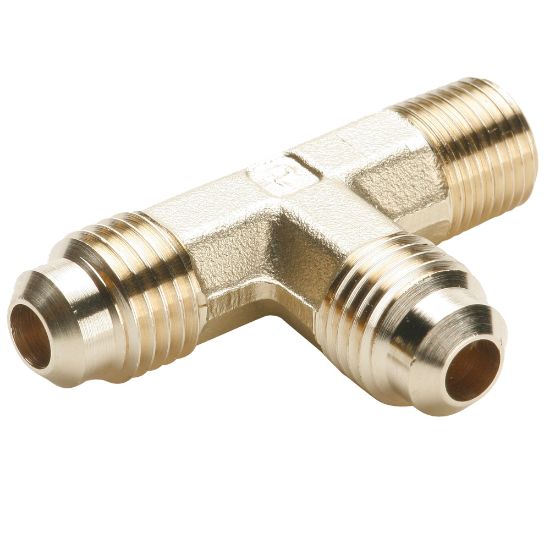

151F-10-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 52 days
Partner Available:	11 in stock

SKU 151F-10-8

$47.98/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Run Tee
Connection 2 Type	Male Pipe	Connection 1 Type	Flare
Connection 3 Type	Flare	Connection 1 Thread Size	7/8-14 inch
Connection 3 Thread Size	7/8-14 inch	Connection 1 Tube Outside Diameter	5/8 inch
Connection 3 Tube Outside Diameter	5/8 inch	Product Style	Flare to Pipe
Connection 2 Thread Size	1/2 inch	Connection 2 Tube Outside Diameter	NA
Minimum Operating Temperature	-53 °C	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Specifications Met	SAE J512, SAE J513	Brand	Parker
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Division	Fluid System Connectors Division
Maximum Operating Pressure	44.8 bar	O-Ring Material	Fluorocarbon
Nut Material	Brass	Body Material	Brass
Maximum Operating Temperature	250 °F	Division	Fluid System Connectors Division
