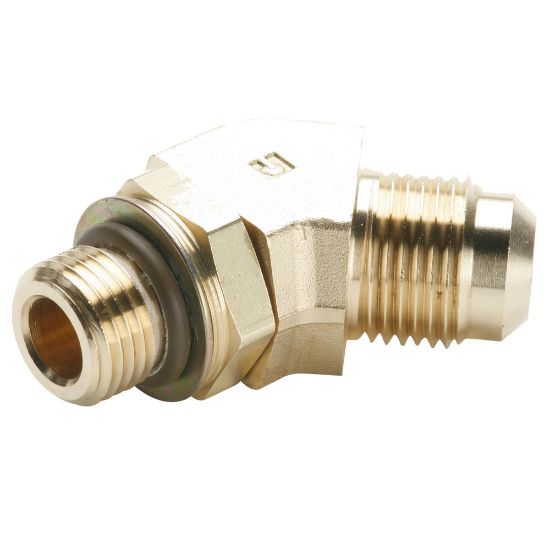

1595F-8-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 22 days
Partner Available:	41 in stock

SKU 1595F-8-8

$39.69/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 1 Thread Size	3/4-16 inch	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Tube Outside Diameter	NA	Connection 2 Type	SAE Straight Thread
Connection 3 Type	NA	Connection 2 Thread Size	1/2 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Shape	45° Forged Elbow	Product Style	Flare to Straight Thread
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-53 °C	Brand	Parker
Specifications Met	SAE J512, SAE J513	Maximum Operating Pressure	51.7 bar
O-Ring Material	Fluorocarbon	Nut Material	Brass
Body Material	Brass	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
