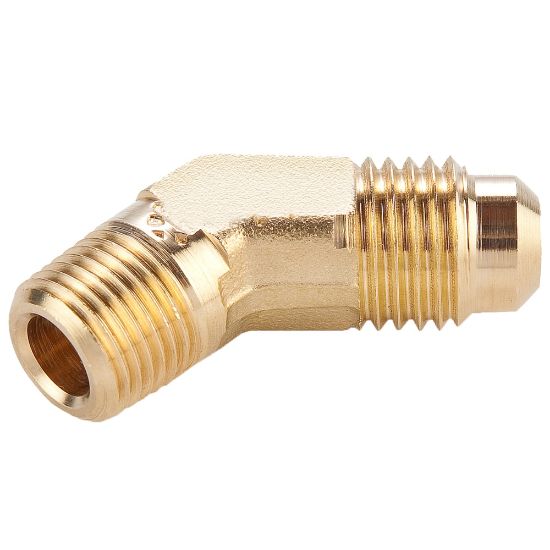

159F-10-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	91 in stock

SKU 159F-10-8

$45.57/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Type	Male Pipe
Connection 1 Type	Flare	Connection 1 Thread Size	7/8-14 inch
Connection 1 Tube Outside Diameter	5/8 inch	Product Style	Flare to Pipe
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	1/2 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Shape	45° Forged Elbow
Nut Material	Brass	Body Material	Brass
Division	Fluid System Connectors Division	O-Ring Material	Fluorocarbon
Dimensional Weight	0.27594424460431655 lb	Maximum Operating Pressure	650 psi
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Technology	Fluid & Gas Handling	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Specifications Met	SAE J512, SAE J513	Brand	Parker
Minimum Operating Temperature	-53 °C
