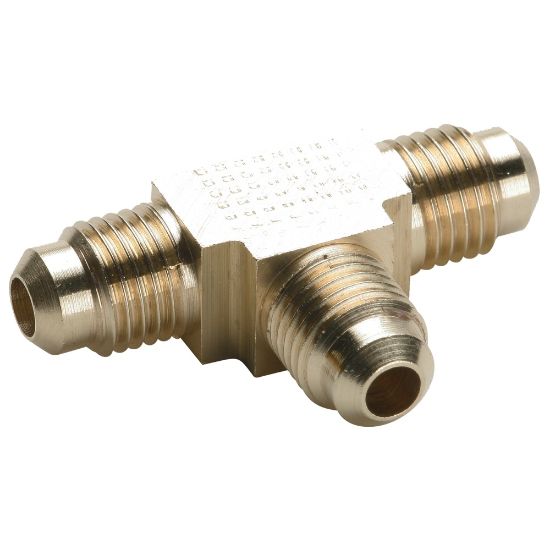

244F-4 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 22 days
Partner Available:	Backordered

SKU 244F-4

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Flare to Flare
Connection 1 Type	Flare	Connection 2 Type	Flare
Connection 1 Thread Size	7/16-20 inch	Connection 1 Tube Outside Diameter	1/4 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	1/4 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Shape	90° Extruded Elbow
Division	Fluid System Connectors Division	Maximum Operating Temperature	121 °C
Division	Fluid System Connectors Division	Nut Material	Brass
O-Ring Material	Fluorocarbon	Body Material	Brass
Maximum Operating Pressure	193 bar	Minimum Operating Temperature	-65 °F
Application	Pumps, Gas Grills, Coffee Makers, Adapters	Specifications Met	SAE J512, SAE J513
Brand	Parker	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Technology	Fluid & Gas Handling	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
