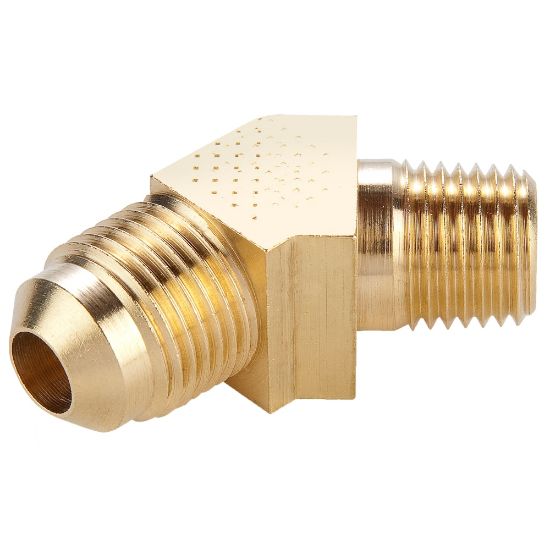

259F-4-4 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	1 Limited Stock

SKU 259F-4-4

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Type	Male Pipe
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 1 Tube Outside Diameter	1/4 inch	Product Style	Flare to Pipe
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	1/4 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Shape	45° Extruded Elbow
Minimum Operating Temperature	-53 °C	Specifications Met	SAE J512, SAE J513
Brand	Parker	Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines
Maximum Operating Temperature	121 °C	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Maximum Operating Pressure	96.5 bar	O-Ring Material	Fluorocarbon
Nut Material	Brass	Body Material	Brass
