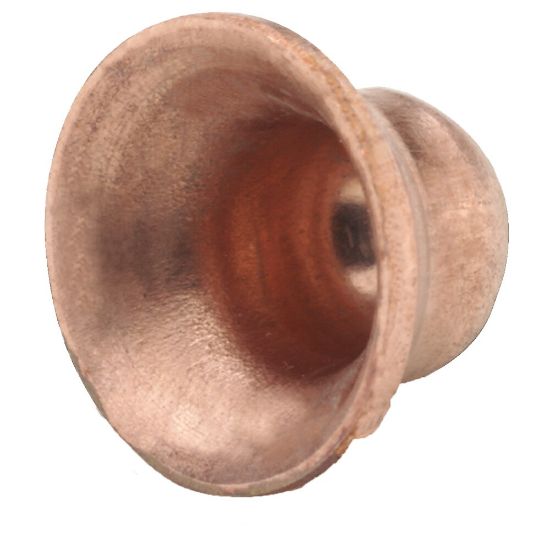

3GF-8 - Brass 45° Flare Fittings

Name: 3GF-8 - Brass 45° Flare Fittings
SKU: 3GF-8
Price: 2.95 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:

11 in stock

Olivette, MO

Partner Available:

33 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 3GF-8

$2.95/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 1 Tube Outside Diameter	1/2 inch	Connection 3 Tube Outside Diameter	NA
Product Style	Flare	Connection 2 Type	NA
Connection 3 Type	NA	Connection 2 Thread Size	NA
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Connection 1 Thread Size	NA	Shape	Seal Bonnet
Minimum Operating Temperature	-53 °C	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Specifications Met	SAE J512, SAE J513	Brand	Parker
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Division	Fluid System Connectors Division
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Nut Material	Brass
Body Material	Brass	Maximum Operating Pressure	750 psi
