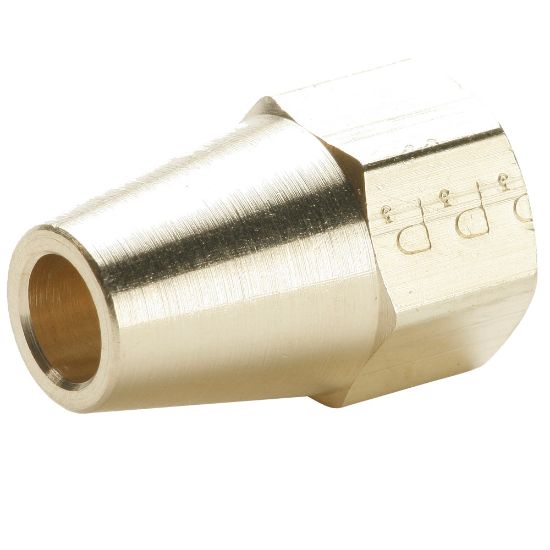

41FL-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 8 days
Partner Available:	51 in stock

SKU 41FL-8

$12.05/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 1 Thread Size	3/4-16 inch	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Tube Outside Diameter	NA	Product Style	Flare
Connection 2 Type	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Shape	Long Extruded Nut
Division	Fluid System Connectors Division	Maximum Operating Temperature	250 °F
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Technology	Fluid & Gas Handling
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Brand	Parker
Specifications Met	SAE J512, SAE J513	Minimum Operating Temperature	-65 °F
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Maximum Operating Pressure	2800 psi
O-Ring Material	Fluorocarbon	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
