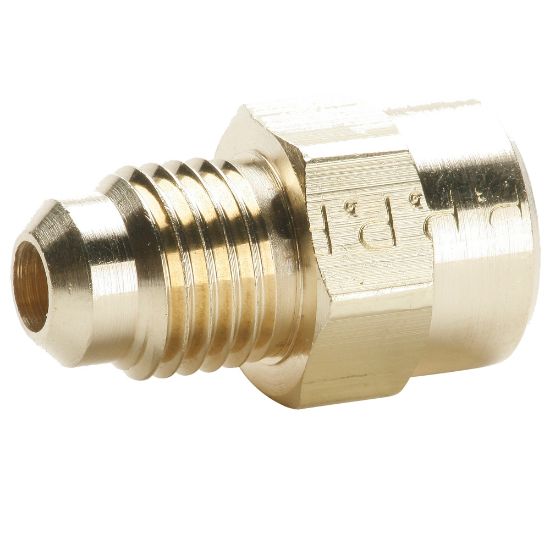

46F-10-8 - Brass 45° Flare Fittings

Name: 46F-10-8 - Brass 45° Flare Fittings
SKU: 46F-10-8
Price: 9.29 USD
Availability: LimitedAvailability

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:

3 in stock

Olivette, MO	2
Decatur, IL	1

Partner Available:

3 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 46F-10-8

$9.29/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 2 Type	Female Pipe	Connection 1 Type	Flare
Connection 1 Thread Size	7/8-14 inch	Connection 1 Tube Outside Diameter	5/8 inch
Connection 3 Tube Outside Diameter	NA	Connection 3 Type	NA
Connection 2 Thread Size	1/2 inch	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Product Style	Flare to Female Pipe
Division	Fluid System Connectors Division	Brand	Parker
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Maximum Operating Pressure	650 psi	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-65 °F	Body Material	Brass
Specifications Met	SAE J512, SAE J513	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
O-Ring Material	Fluorocarbon	Nut Material	Brass
