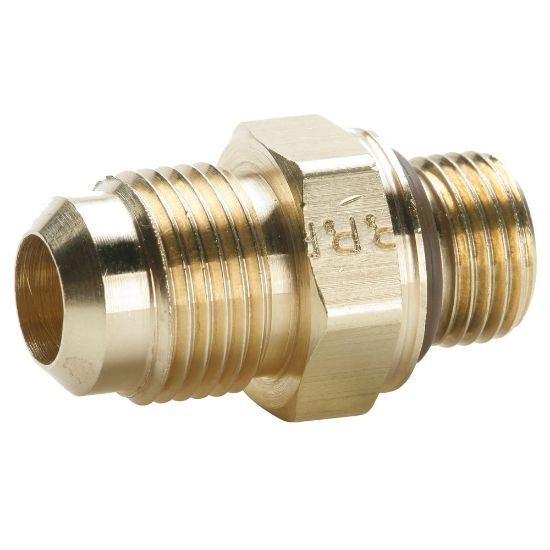

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

485F-12-12 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 24 days
Partner Available:	10 in stock

SKU 485F-12-12

$68.89/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Type	Flare	Connection 3 Tube Outside Diameter	NA
Connection 2 Type	SAE Straight Thread	Connection 3 Type	NA
Connection 2 Thread Size	1-1/16-14 inch	Connection 3 Thread Size	NA
Connection 1 Tube Outside Diameter	3/4 inch	Connection 2 Tube Outside Diameter	NA
Product Style	Flare to Straight Thread	Connection 1 Thread Size	1-1/16-12 inch
Division	Fluid System Connectors Division	Brand	Parker
Division	Fluid System Connectors Division	Technology	Fluid & Gas Handling
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Maximum Operating Pressure	550 psi	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-65 °F	Body Material	Brass
Specifications Met	SAE J512, SAE J513	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
O-Ring Material	Fluorocarbon	Nut Material	Brass
