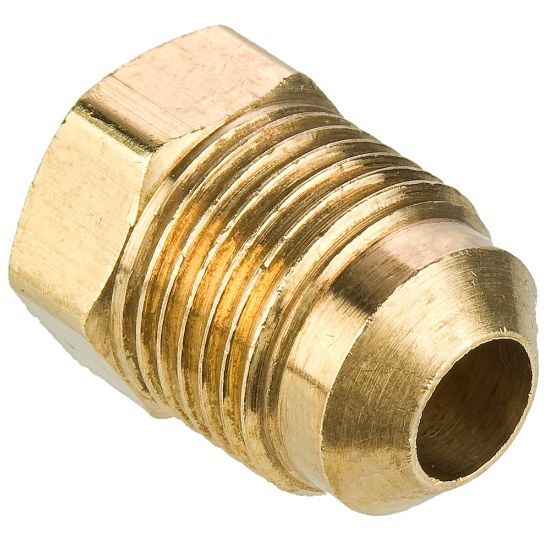

639F-8 - Brass 45° Flare Fittings

Name: 639F-8 - Brass 45° Flare Fittings
SKU: 639F-8
Price: 6.51 USD
Availability: LimitedAvailability

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

163 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 639F-8

$6.51/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 1 Thread Size	3/4-16 inch	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Tube Outside Diameter	NA	Product Style	Flare
Connection 2 Type	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Shape	Seal Plug
Maximum Operating Temperature	250 °F	Division	Fluid System Connectors Division
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Minimum Operating Temperature	-65 °F
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Brand	Parker
Specifications Met	SAE J512, SAE J513	Dimensional Weight	0.11037769784172662 lb
O-Ring Material	Fluorocarbon	Body Material	Brass
Maximum Operating Pressure	51.7 bar	Nut Material	Brass
Division	Fluid System Connectors Division
