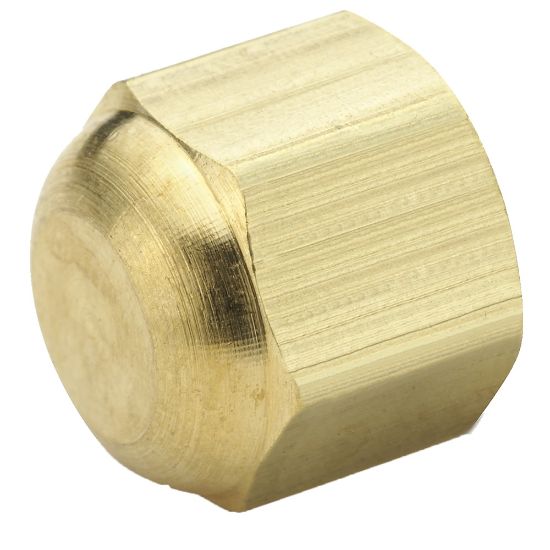

640F-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	357 in stock

SKU 640F-8

$6.28/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube Outside Diameter	NA
Connection 2 Type	NA	Connection 1 Thread Size	3/4-16 inch
Connection 3 Thread Size	NA	Connection 3 Type	NA
Connection 1 Type	Flare	Product Style	Flare
Connection 1 Tube Outside Diameter	1/2 inch	Shape	Cap
Connection 2 Thread Size	NA	Connection 3 Tube Outside Diameter	NA
Body Material	Brass	Maximum Operating Pressure	51.7 bar
Nut Material	Brass	O-Ring Material	Fluorocarbon
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Maximum Operating Temperature	121 °C	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Technology	Fluid & Gas Handling
Minimum Operating Temperature	-65 °F	Brand	Parker
Specifications Met	SAE J512, SAE J513	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Dimensional Weight	0.11037769784172662 lb
