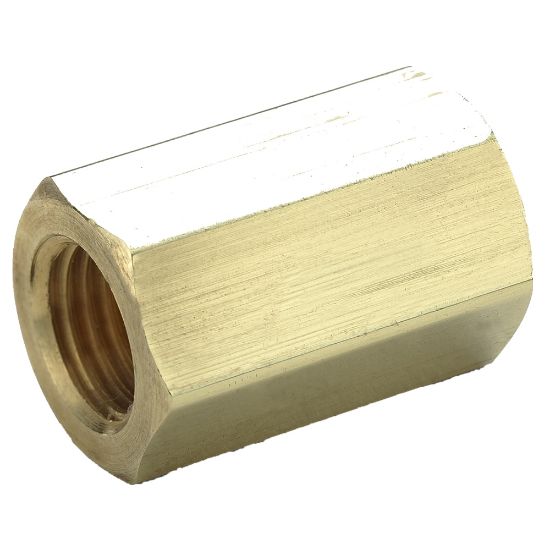

660FHD-8 - Brass 45° Flare Fittings

Name: 660FHD-8 - Brass 45° Flare Fittings
SKU: 660FHD-8
Price: 18.17 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:

7 in stock

Olivette, MO	6
Joplin, MO	1

Partner Available:

4 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 660FHD-8

$18.17/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Flare
Connection 2 Type	Flare	Connection 1 Thread Size	3/4-16 inch
Connection 2 Thread Size	3/4-16 inch	Connection 1 Tube Outside Diameter	1/2 inch
Connection 2 Tube Outside Diameter	1/2 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 3 Thread Size	NA
Shape	Union	Product Style	Female Flare to Female Flare
Specifications Met	SAE J512, SAE J513	Brand	Parker
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	O-Ring Material	Fluorocarbon
Maximum Operating Pressure	750 psi	Nut Material	Brass
Body Material	Brass	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Maximum Operating Temperature	121 °C
Technology	Fluid & Gas Handling	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Minimum Operating Temperature	-53 °C
