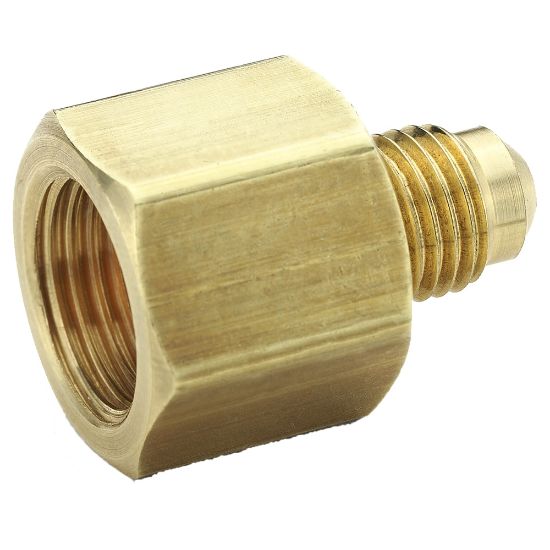

661FHD-4-8 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	39 in stock

SKU 661FHD-4-8

$22.07/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 2 Thread Size	3/4-16 inch	Connection 1 Tube Outside Diameter	1/4 inch
Connection 2 Tube Outside Diameter	1/2 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 3 Thread Size	NA
Product Style	Male Flare to Female Flare	Connection 2 Type	Flare Nut
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Technology	Fluid & Gas Handling
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Minimum Operating Temperature	-53 °C
Application	Pumps, Gas Grills, Coffee Makers, Adapters	Specifications Met	SAE J512, SAE J513
Brand	Parker	O-Ring Material	Fluorocarbon
Maximum Operating Pressure	96.5 bar	Division	Fluid System Connectors Division
Nut Material	Brass	Body Material	Brass
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
