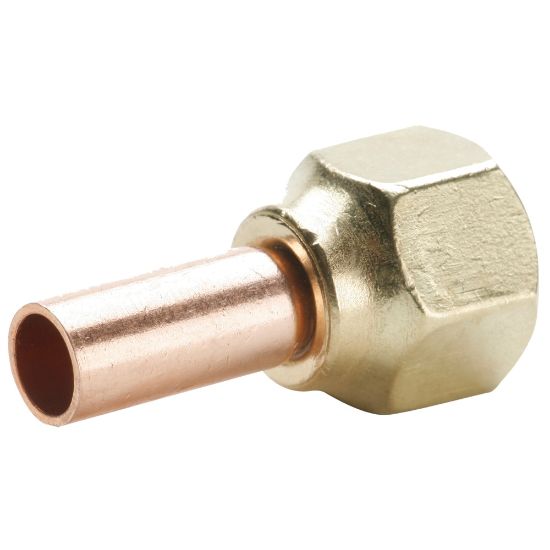

US5-6 - Brass 45° Flare Fittings

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 34 days
Partner Available:	6 in stock

SKU US5-6

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Flare Adapter
Connection 3 Tube Outside Diameter	NA	Connection 2 Thread Size	3/8 inch
Connection 1 Thread Size	5/8-18 inch	Product Style	Flare to Tube Stem
Connection 3 Thread Size	NA	Connection 2 Type	Tube Stem
Connection 1 Tube Outside Diameter	3/8 inch	Connection 2 Tube Outside Diameter	3/8 inch
Connection 1 Type	Flare Nut	Connection 3 Type	NA
Minimum Operating Temperature	-65	Maximum Operating Pressure	2800
O-Ring Material	Fluorocarbon	Brand	Parker
Specifications Met	SAE J512, SAE J513	Application	Pumps, Gas Grills, Coffee Makers, Adapters
Nut Material	Brass	Division	Fluid System Connectors Division
Body Material	Brass	Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Technology	Fluid & Gas Handling
Division	Fluid System Connectors Division	Maximum Operating Temperature	250
