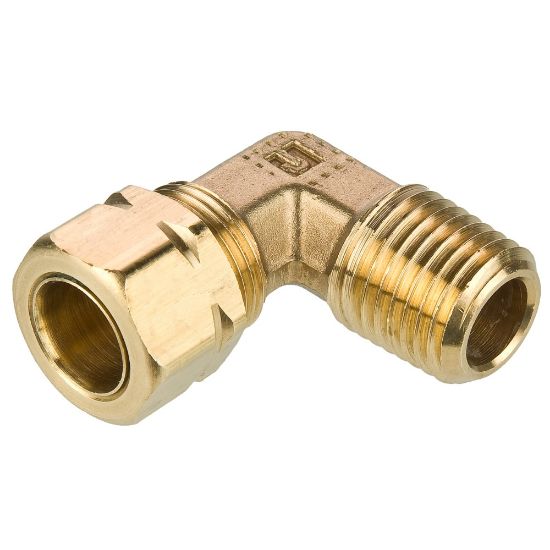

169CA-12-8 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 52 days
Partner Available:	19 in stock

SKU 169CA-12-8

$72.92/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Connection 2 Type	Male Pipe	Connection 2 Thread Size	1/2"
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	3/4" (O.D.)	Configuration	Tube to Pipe
Materials of Construction	Brass (Sleeve)	Dimensional Weight	0.5519 lb
Application	Pumps	Body Material	Brass
Maximum Operating Pressure	2800 psi	Tube Material	FEA
Maximum Operating Temperature	121 °C	For Fluid Type	Water
Connection Type	NPTF	Division	Fluid System Connectors Division
Minimum Operating Temperature	-65 °F
