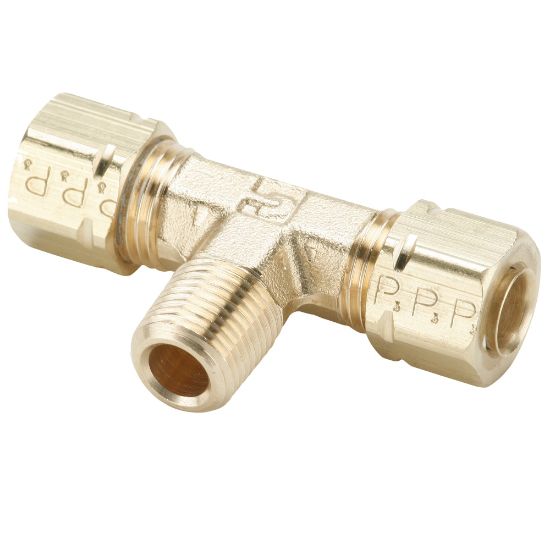

172CA-2-2 - Brass Compression Fittings, Compress-Align

Name: 172CA-2-2 - Brass Compression Fittings, Compress-Align
SKU: 172CA-2-2
Price: 19.25 USD
Availability: LimitedAvailability

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Manufacturer: Parker

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

90 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 172CA-2-2

$19.25/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Connection 2 Type	Male Pipe	Connection 2 Thread Size	1/8"
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/8" (O.D.)	Configuration	Tube to Pipe
Application	Pumps	Minimum Operating Temperature	-65 °F
Body Material	Brass	Materials of Construction	Brass (Sleeve)
Maximum Operating Pressure	2800 psi	Dimensional Weight	0.2759 lb
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
For Fluid Type	Non-combustible Gases	Connection Type	NPTF
Tube Material	Thermoplastic
