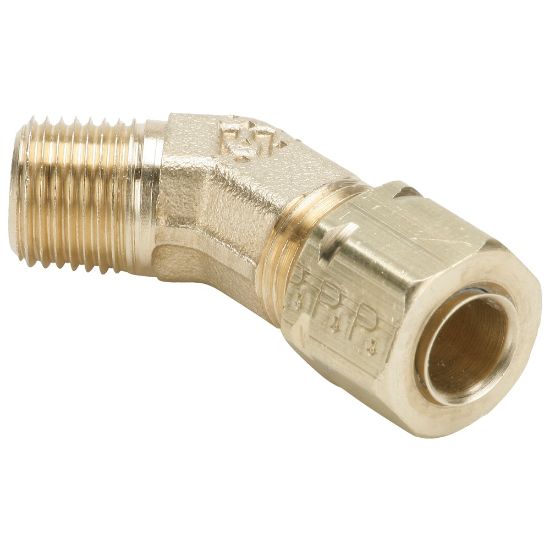

179CA-6-2 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	1 Limited Stock

SKU 179CA-6-2

$39.97/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 45°
Connection 2 Type	Male Pipe	Connection 2 Thread Size	1/8"
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	3/8" (O.D.)	Configuration	Tube to Pipe
Division	Fluid System Connectors Division	For Fluid Type	Non-combustible Gases
Maximum Operating Temperature	250 °F	Connection Type	NPTF
Tube Material	Thermoplastic	Materials of Construction	Brass (Sleeve)
Application	Purification	Minimum Operating Temperature	-54 °C
Body Material	Brass	Maximum Operating Pressure	193 bar
