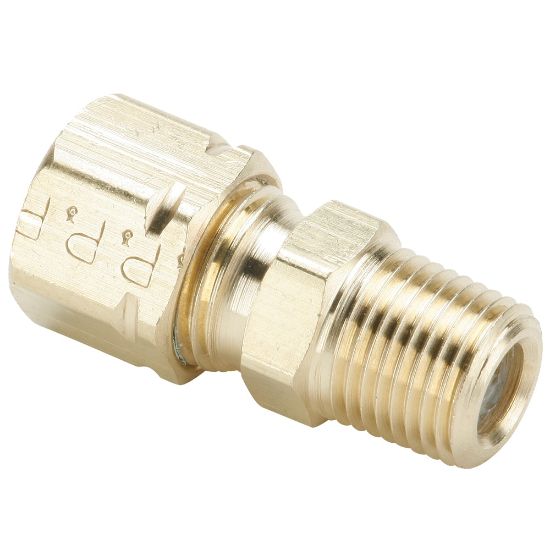

68CA-2-2 - Brass Compression Fittings, Compress-Align

Name: 68CA-2-2 - Brass Compression Fittings, Compress-Align
SKU: 68CA-2-2
Price: 4.61 USD
Availability: InStock

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Manufacturer: Parker

Availability:

24 in stock

Wichita, KS	4
Springfield, MO	3
COLUMBIA, MO	3
Kansas City, KS	3
Peoria, IL	3
Decatur, IL	3
Joplin, MO	2
Olivette, MO	2
Olivette, MO	1

Partner Available:

992 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 68CA-2-2

$4.61/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Connection 2 Type	Male Pipe	Product Style	Connector
Connection 2 Thread Size	1/8"	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/8" (O.D.)	Configuration	Tube to Pipe
Dimensional Weight	0.1104 lb	Materials of Construction	Brass (Nut)
Body Material	Brass	Maximum Operating Pressure	193 bar
For Fluid Type	Water	Connection Type	NPTF
Division	Fluid System Connectors Division	Tube Material	PFA
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-54 °C
Application	Pumps
