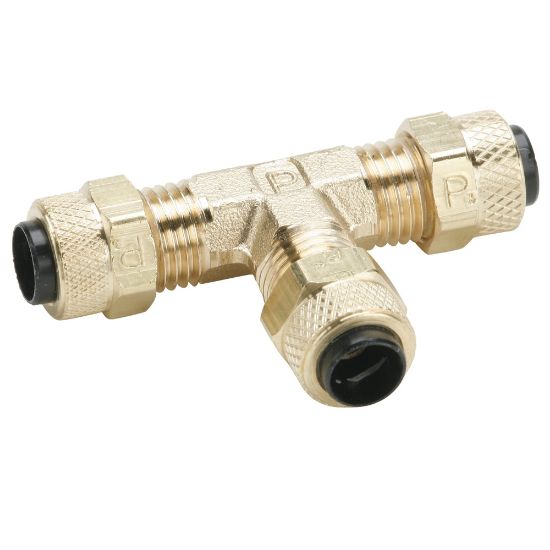

164P-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	591 in stock

SKU 164P-4

$16.60/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 2 Thread Size (inch)	na	Connection 1 Style	Compression
Connection 2 Style	Compression	Style	Tube to Tube
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
Maximum Operating Pressure	150 psi	Nut Material	Brass
Body Material	Brass	Maximum Operating Temperature	150 °F
Division	Fluid System Connectors Division	Minimum Operating Temperature	-17 °C
Sleeve Material	Brass, Acetal Copolymer	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Dimensional Weight	0.05518884892086331 lb	Application	Dental, Packaging, Machine tool, Car wash
