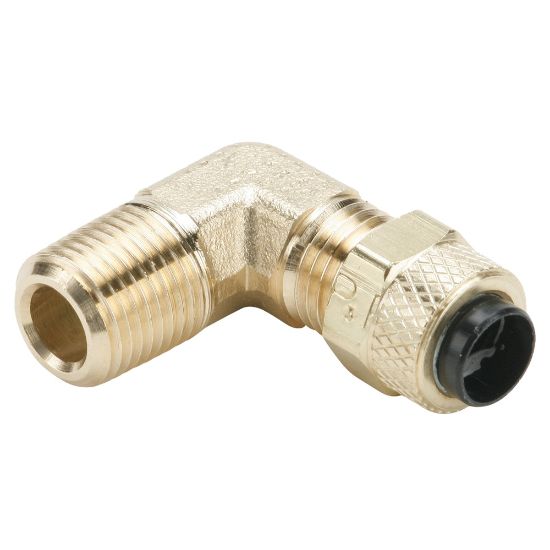

169P-4-1 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Name: 169P-4-1 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
SKU: 169P-4-1
Price: 14.88 USD
Availability: InStock

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:

10 in stock

Kansas City, KS

Partner Available:

3 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 169P-4-1

$14.88/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	90° Elbow
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Pipe
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/16
Maximum Operating Pressure	150 psi	Nut Material	Brass
Application	Dental, Packaging, Machine tool, Car wash	Division	Fluid System Connectors Division
Body Material	Brass	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Maximum Operating Temperature	65 °C	Minimum Operating Temperature	-17 °C
Sleeve Material	Brass, Acetal Copolymer
