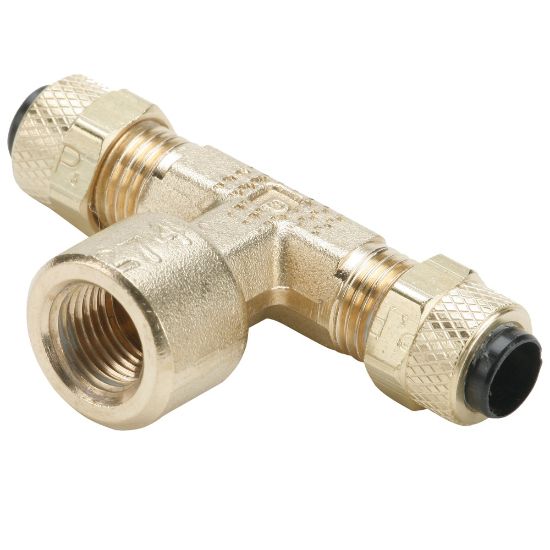

177P-4-2 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	5 in stock

SKU 177P-4-2

$32.15/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Branch Tee
Connection 2 Thread Size (inch)	1/8	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Sleeve Material	Brass, Acetal Copolymer	Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl
Application	Dental, Packaging, Machine tool, Car wash	Minimum Operating Temperature	0 °F
Nut Material	Brass	Body Material	Brass
Maximum Operating Pressure	10 bar	Division	Fluid System Connectors Division
Maximum Operating Temperature	65 °C
