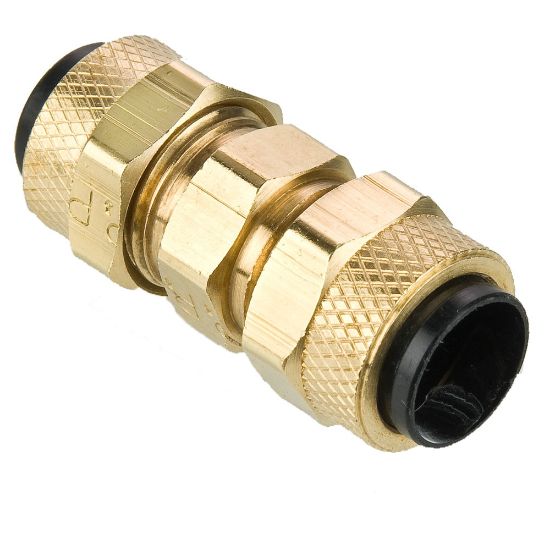

62P-5 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Name: 62P-5 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
SKU: 62P-5
Price: 9.47 USD
Availability: LimitedAvailability

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

22 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 62P-5

$9.47/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 1 Style	Compression	Connection 2 Style	Compression
Style	Tube to Tube	Connection 1 Tube O.D. (inch)	5/16
Connection 2 Tube O.D. (inch)	5/16	Shape	Union
Maximum Operating Temperature	65 °C	Division	Fluid System Connectors Division
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Sleeve Material	Brass, Acetal Copolymer
Minimum Operating Temperature	-17 °C	Application	Dental, Packaging, Machine tool, Car wash
Dimensional Weight	0.27594424460431655 lb	Maximum Operating Pressure	150 psi
Body Material	Brass	Nut Material	Brass
