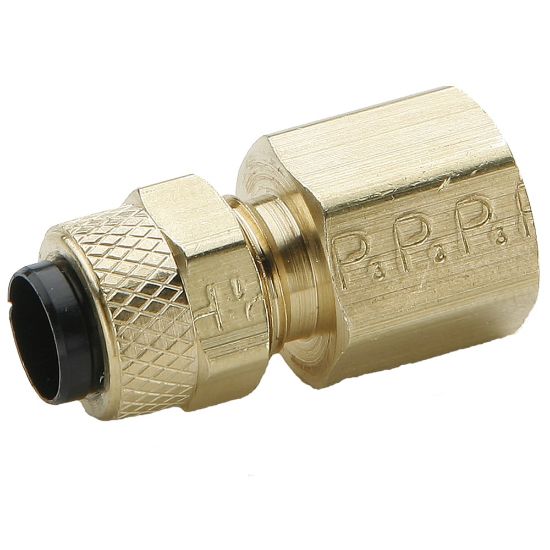

66P-4-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Name: 66P-4-4 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.
SKU: 66P-4-4
Price: 6.85 USD
Availability: InStock

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

Manufacturer: Parker

Availability:

29 in stock

Kansas City, KS	19
Olivette, MO	7
Decatur, IL	3

Partner Available:

701 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 66P-4-4

$6.85/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 1 Style	Compression
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Thread Size (inch)	1/4
Connection 2 Style	Female Pipe	Style	Tube to Female Pipe
Maximum Operating Temperature	65 °C	Sleeve Material	Brass, Acetal Copolymer
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Minimum Operating Temperature	0 °F
Application	Packaging	Dimensional Weight	0.27594424460431655 lb
Nut Material	Brass	Body Material	Brass
Maximum Operating Pressure	10 bar	Division	Fluid System Connectors Division
