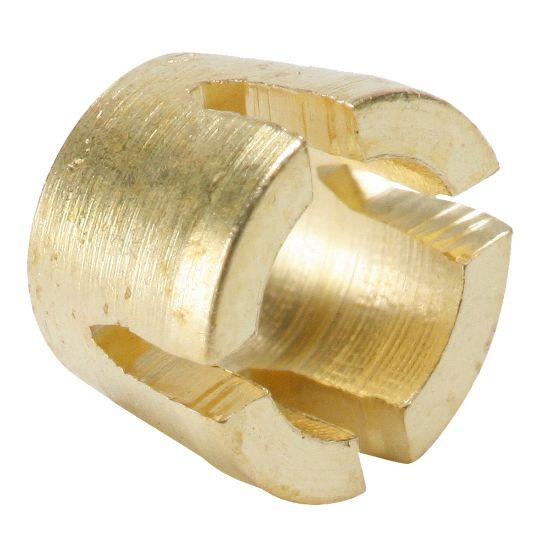

60TF-2 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	80 in stock

SKU 60TF-2

$3.94/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Sleeve
Connection 1 Type	Push-to-Connect	Connection 2 Type	NA
Product Style	Tube to Tube	Connection 1 Size	1/8 inch
Connection 2 Size	NA	Connection 2 Tube Outside Diameter	na
Maximum Operating Temperature	+93.3 °C	Media	Compressed Air
Sleeve Material	Brass	Technology	Fluid & Gas Handling
Collet Material	Brass	Tube Material	SAE J844 Type A & B Nylon Tubing
Connection 1 Size	Compression	Minimum Operating Temperature	-40 °C
Brand	Parker	Application	Air Shift Transmission, Seat Controls, Dash Controls
O-Ring Material	Nitrile	Maximum Operating Pressure	10.3 bar
Nut Material	Brass	Body Material	Brass
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
