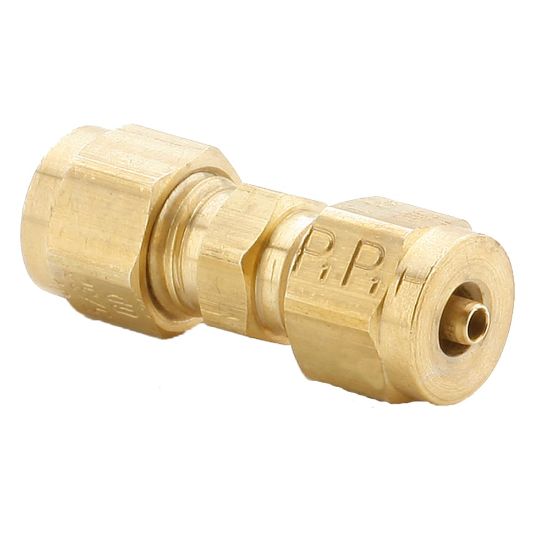

62TF-2 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 31 days
Partner Available:	43 in stock

SKU 62TF-2

$19.05/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Tube to Tube
Connection 1 Type	Compression	Connection 2 Type	Compression
Shape	Union	Connection 2 Size	1/8 inch
Connection 1 Size	1/8 inch	Application	Air Shift Transmission, Seat Controls, Dash Controls
Maximum Operating Pressure	10 bar	Nut Material	Brass
O-Ring Material	Nitrile	Body Material	Brass
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Maximum Operating Temperature	104 °C	Technology	Fluid & Gas Handling
Connection 2 Tube Outside Diameter	na	Media	Compressed Air
Tube Material	SAE J844 Type & B Nylon Tubing	Connection 1 Size	Compression
Sleeve Material	Brass	Collet Material	Brass
Minimum Operating Temperature	-40 °C	Brand	Parker
