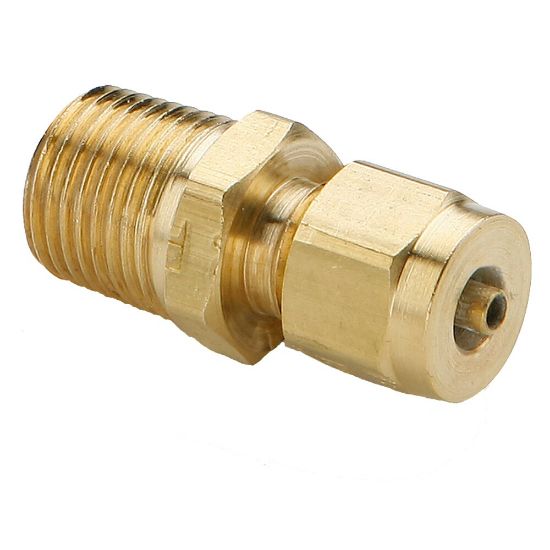

68TF-5/32-1 - Brass Compression-Style Transmission Fittings

Parker's Transmission fittings are designed to eliminate notch stress related to over-torque and are ideal for pressure protected pneumatic transmission applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	7 in stock

SKU 68TF-5/32-1

$15.80/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	1/16 inch
Product Style	Tube to Pipe	Connection 2 Type	Male Pipe Thread
Connection 1 Type	Compression	Shape	Connector
Connection 1 Size	5/32 inch	Media	Compressed Air
Minimum Operating Temperature	-40 °C	Application	Air Shift Transmission, Seat Controls, Dash Controls
Brand	Parker	Maximum Operating Pressure	10.3 bar
Body Material	Brass	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	Maximum Operating Temperature	+93.3 °C
Tube Material	SAE J844 Type & B Nylon Tubing	Technology	Fluid & Gas Handling
