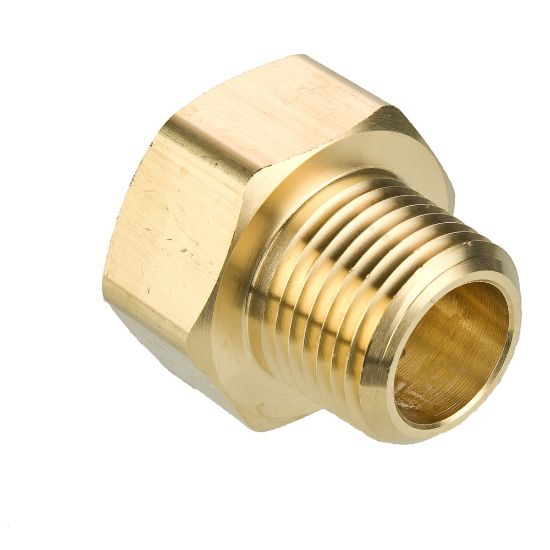

83GH-12-12 - Brass Garden Hose Fittings

Parker's Garden Hose fittings and high flow quick couplers are solid brass with 3/4" garden hose thread.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	58 in stock

SKU 83GH-12-12

$23.21/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Connector
Connection 1 Tube O.D. (inch)	na	Connection 2 Thread Size (inch)	3/4
Connection 1 Style	Hose Thread	Connection 2 Hose I.D. (inch)	na
Connection 1 Thread Size (inch)	3/4	Connection 1 Hose I.D. (inch)	na
Connection 2 Style	Male Pipe	Style	Female Hose to Male Pipe
Washer Material	Rubber	Body Material	Brass
Tube Material	Garden Hose, Tubing, Pipe	Division	Fluid System Connectors Division
Maximum Operating Temperature	100 °F	Minimum Operating Temperature	35 °F
Maximum Operating Pressure	150 psi	Dimensional Weight	0.27594424460431655 lb
