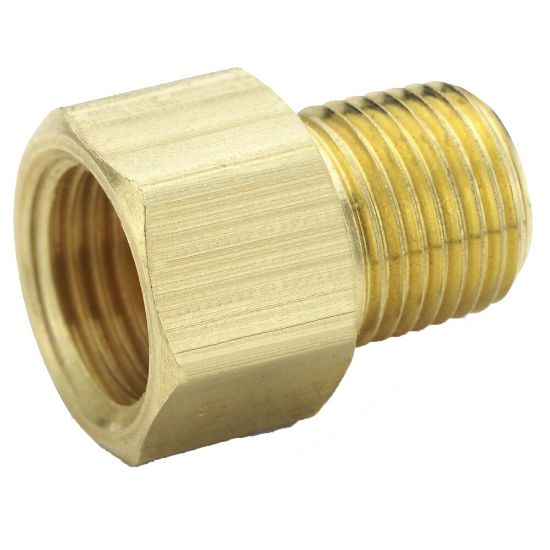

48IFHD-5-4 - Brass Inverted Flare Fittings

Name: 48IFHD-5-4 - Brass Inverted Flare Fittings
SKU: 48IFHD-5-4
Price: 4.00 USD
Availability: LimitedAvailability

Parker's economical inverted flare fittings offer a metal-to-metal seal that is internal to the fitting for tighter tube bends. Meets functional requirements of SAE J512

Manufacturer: Parker

Availability:

3 in stock

Springfield, MO	2
Olivette, MO	1

Partner Available:

152 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 48IFHD-5-4

$4.00/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 1 Tube O.D. (inch)	5/16
Connection 2 Style	Male Pipe	Connection 2 Thread Size (inch)	1/4
Connection 1 Style	Inverted Flare	Style	Flare to Pipe
Division	Fluid System Connectors Division	Application	Pumps, Brake Lines
Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon	Maximum Operating Pressure	83 bar
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-53 °C
Body Material	Brass	Specifications Met	SAE J512
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Nut Material	Brass, Zinc Chromate Steel
