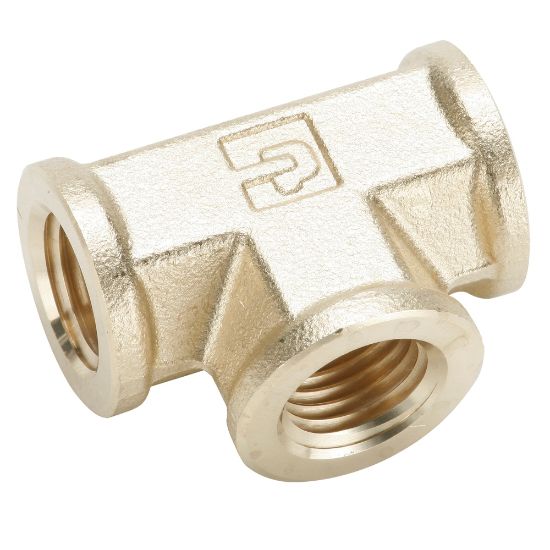

1203P-8 - Brass Pipe Fittings

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	713 in stock

SKU 1203P-8

$31.63/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female Pipe to Female Pipe
Shape	Tee - Forged	Length	n/a
Connection 1 Size	1/2"	Connection 1 Type	Female Pipe
Connection 2 Size	1/2"	Connection 2 Type	Female Pipe
Minimum Operating Temperature	-53 °C	Specifications Met	SAE J530, SAE J531
Maximum Operating Pressure	1000 psi	Body Material	Brass
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
Tube Material	Copper, Brass, Iron Pipe
