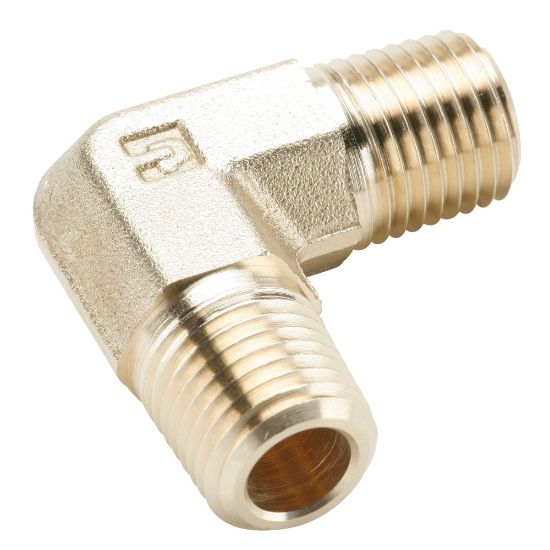

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

1204P-2 - Brass Pipe Fittings

Name: 1204P-2 - Brass Pipe Fittings
SKU: 1204P-2
Price: 4.70 USD
Availability: InStock

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Manufacturer: Parker

Availability:

612 in stock

Kansas City, KS	599
Springfield, MO	3
WICHITA, KS	2
COLUMBIA, MO	2
Kansas City, KS	2
Joplin, MO	2
Peoria, IL	2

Partner Available:

407 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1204P-2

$4.70/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Male Pipe to Male Pipe
Shape	Elbow 90° - Forged, Male	Length	n/a
Connection 1 Size	1/8"	Connection 1 Type	Male Pipe
Connection 2 Size	1/8"	Connection 2 Type	Male Pipe
Maximum Operating Pressure	68 bar	Body Material	Brass
Division	Fluid System Connectors Division	Maximum Operating Temperature	250 °F
Tube Material	Copper, Brass, Iron Pipe	Minimum Operating Temperature	-53 °C
Specifications Met	SAE J530, SAE J531	Dimensional Weight	0.2759 lb
