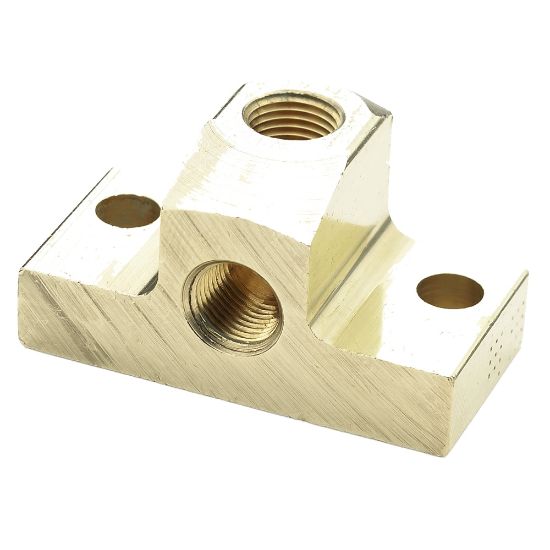

2200PDE-2 - Brass Pipe Fittings

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	244 in stock

SKU 2200PDE-2

$24.22/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female Pipe to Female Pipe
Length	n/a	Connection 1 Size	1/8"
Connection 1 Type	Female Pipe	Connection 2 Size	1/8"
Connection 2 Type	Female Pipe	Shape	Elbow 90° - Extruded, Drop Ear
Division	Fluid System Connectors Division	Maximum Operating Pressure	68 bar
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-65 °F
Body Material	Brass	Specifications Met	SAE J530, SAE J531
Tube Material	Copper, Brass, Iron Pipe	Dimensional Weight	0.2922 lb
