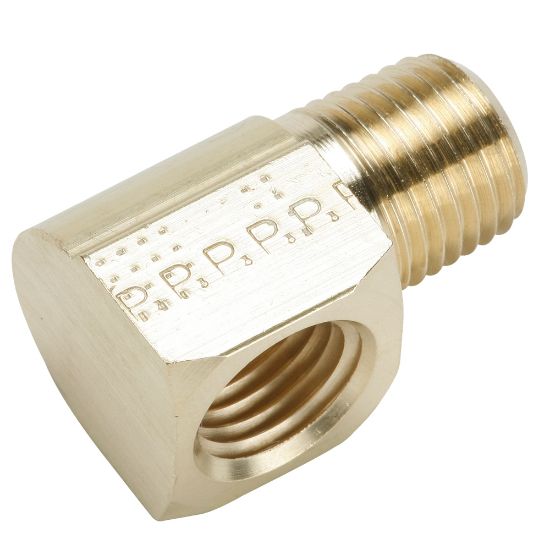

2202P-8-8 - Brass Pipe Fittings

Name: 2202P-8-8 - Brass Pipe Fittings
SKU: 2202P-8-8
Price: 14.71 USD
Availability: InStock

Parker's forged and extruded brass pipe fittings meet functional requirements of SAE J530 and SAE J531.

Manufacturer: Parker

Availability:

52 in stock

TOPEKA, KS	18
Decatur, IL	13
WICHITA, KS	5
COLUMBIA, MO	5
Kansas City, KS	4
Peoria, IL	3
Joplin, MO	2
Olivette, MO	2

Partner Available:

410 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 2202P-8-8

$14.71/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Product Style	Female Pipe to Male Pipe
Length	n/a	Connection 1 Size	1/2"
Connection 1 Type	Female Pipe	Connection 2 Size	1/2"
Connection 2 Type	Male Pipe	Shape	Elbow 90° - Extruded Street Fitting
Division	Fluid System Connectors Division	Maximum Operating Pressure	1000 psi
Maximum Operating Temperature	121 °C	Minimum Operating Temperature	-53 °C
Body Material	Brass	Specifications Met	SAE J530, SAE J531
Tube Material	Copper, Brass, Iron Pipe	Dimensional Weight	0.2759 lb
